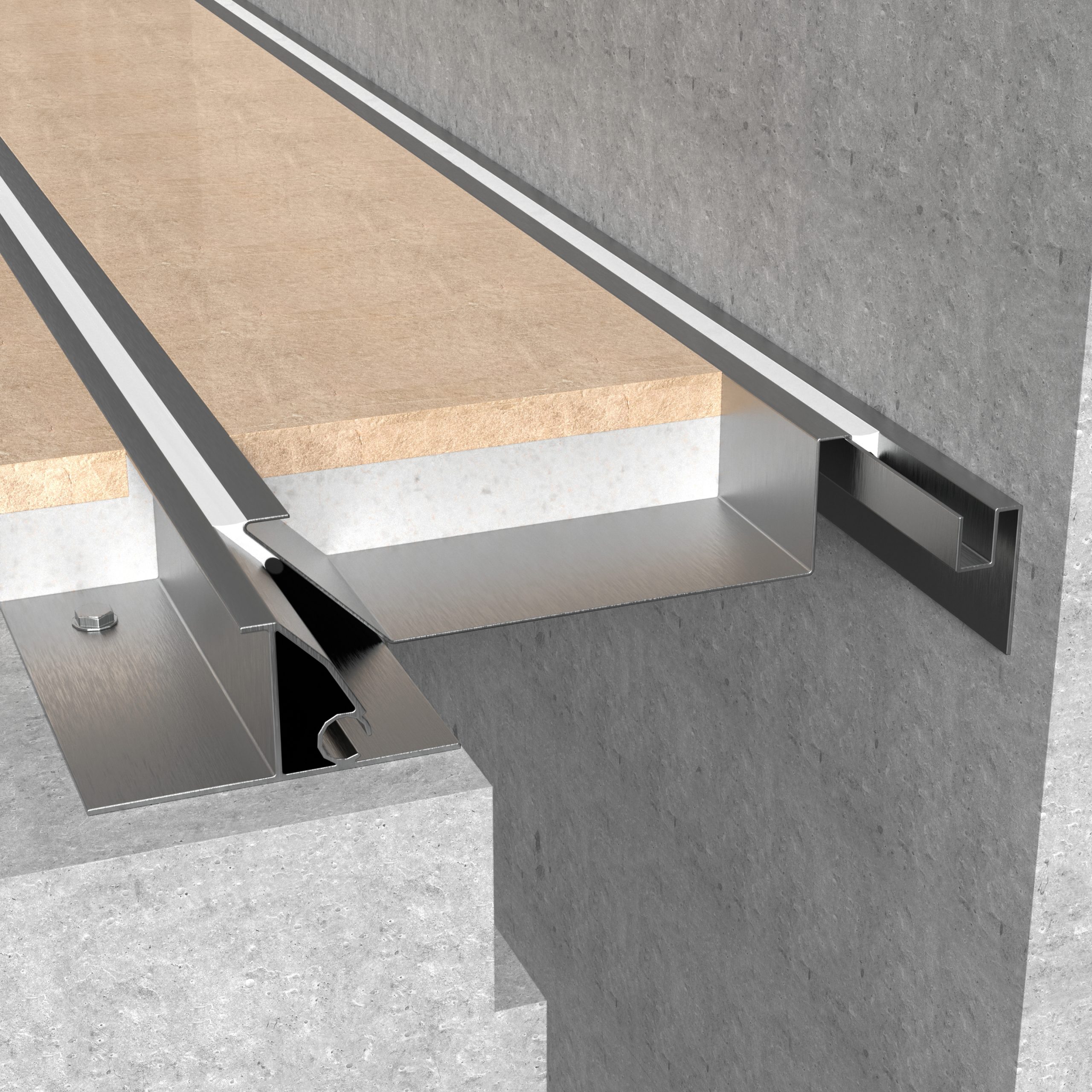

This is a Floor to Wall all stainless steel Seismic Expansion Joint Cover, featuring a POP UP System, which is ideal for high grade marble, granite, limestone and paver floor/wall finishes. The Centering Bar/Compression Spring assembly repositions the pan after seismic movement, reducing maintenance.
ESC Series
Application : floor/wall
Movement : +/- 50% , +/- 100%
Joint width : 2″ – 8”
Optional : vapor/water/fire barrier
Shear movement unlimited
Wider Joint Cover available at request
